You buy chain slings to work, not to sit on a rack. The right choice lifts every load smoothly, passes audits with zero drama, and stays in service far longer than its price tag suggests. The wrong choice snaps hooks, rusts weld toes, and stalls production in the worst moment. This guide treats “chain slings for sale” as a technical decision, not a shopping ad. You will see how grades G80, G100, and stainless differ, how leg count changes safe working load, and which finish beats your site’s worst threat. Read on, compare tables, and lock in the sling your crew really needs.

1 Grade Drives Capacity—Pick It First

Grade	Yield MPa	Proof Load	Safety Factor	Best Field	Key Hook Option
G80	640	2.5 × WLL	4 : 1	Construction, rental yards	Clevis grab, eye sling
G100	980	2.5 × WLL	4 : 1	Production cranes, tight headroom	Self-locking, foundry
Stainless G80	640	2.5 × WLL	4 : 1	Food, acid plant, offshore	Stainless latch

Choose grade by environment and headroom. G100 lifts roughly 25 % more at the same diameter, freeing hook height. Stainless beats corrosion and sanitiser yet costs extra.

2 Leg Count Multiplies Load—But Also Tension

Sling Legs	Common Use	Angle Factor @60°	Stable Load Types
1-Leg	Pumps, motors	1.00	Tight hook spacing
2-Leg	Beam picks	1.15	Long, even loads
3-Leg	Plate, molds	1.15	Uneven centres
4-Leg	Frames, tanks	1.15	Complex shapes

More legs share weight yet spike line tension if angles shrink. Keep legs above 45° when possible.

3 Diameter & WLL Table—Real Topone Data

Ø mm	G80 WLL 1-Leg kg	G100 WLL 1-Leg kg	4-Leg WLL @60° G80 kg	4-Leg WLL @60° G100 kg	Chain kg / m	Min Hook Throat mm
8	2 000	2 500	6 880	8 600	1.4	13
10	3 150	4 000	10 850	13 800	2.2	17
13	5 300	6 700	18 270	23 230	3.8	22
16	8 000	10 000	27 600	34 500	5.7	28
20	12 500	16 000	43 100	55 200	9.0	34

Topone proofs every sling leg at 2.5 × WLL and embosses “8-TPN” or “10-TPN” plus heat code on each chain segment.

4 Finish vs Environment—Pay for Protection, Not Paint

Finish	Salt-Spray Life h	Temp Range °C	Added Mass %	Ideal Industry
Black paint	72	−40→200	0	Indoor machine shop
Mn-phosphate	480	−20→180	0	Concrete plant, quarry
70 µm hot-dip zinc	1 000	−10→120	3	Port, railyard
Bare stainless	Unlimited	−196→200	0	Food, chemical, marine

Black looks cheap today, zinc survives years outdoors, stainless never rusts.

5 Industry-Specific Picks—One Table Ends Guesswork

Industry	Typical Threat	Recommended Sling	Why It Fits
Building site	Dust, impact	G80 2-leg, black paint	Rugged, cost-smart, easy resupply
Fabrication shop	Tight headroom	G100 3-leg, eye hooks	Smaller chain frees crane height
Food plant	Steam, brine	Stainless G80 1-leg, latch hooks	Non-magnetic, cleans fast
Offshore deck	Salt spray	G80 4-leg, hot-dip zinc	Lower price than stainless, rust delay
Steel mill	200 °C heat	G80 1-leg, foundry hooks	Alloy keeps strength, wide jaw grabs trunnions
Wind tower yard	Long frames	G100 4-leg, self-locking	High WLL in slim chain, auto-closing hooks

新网站250626-6

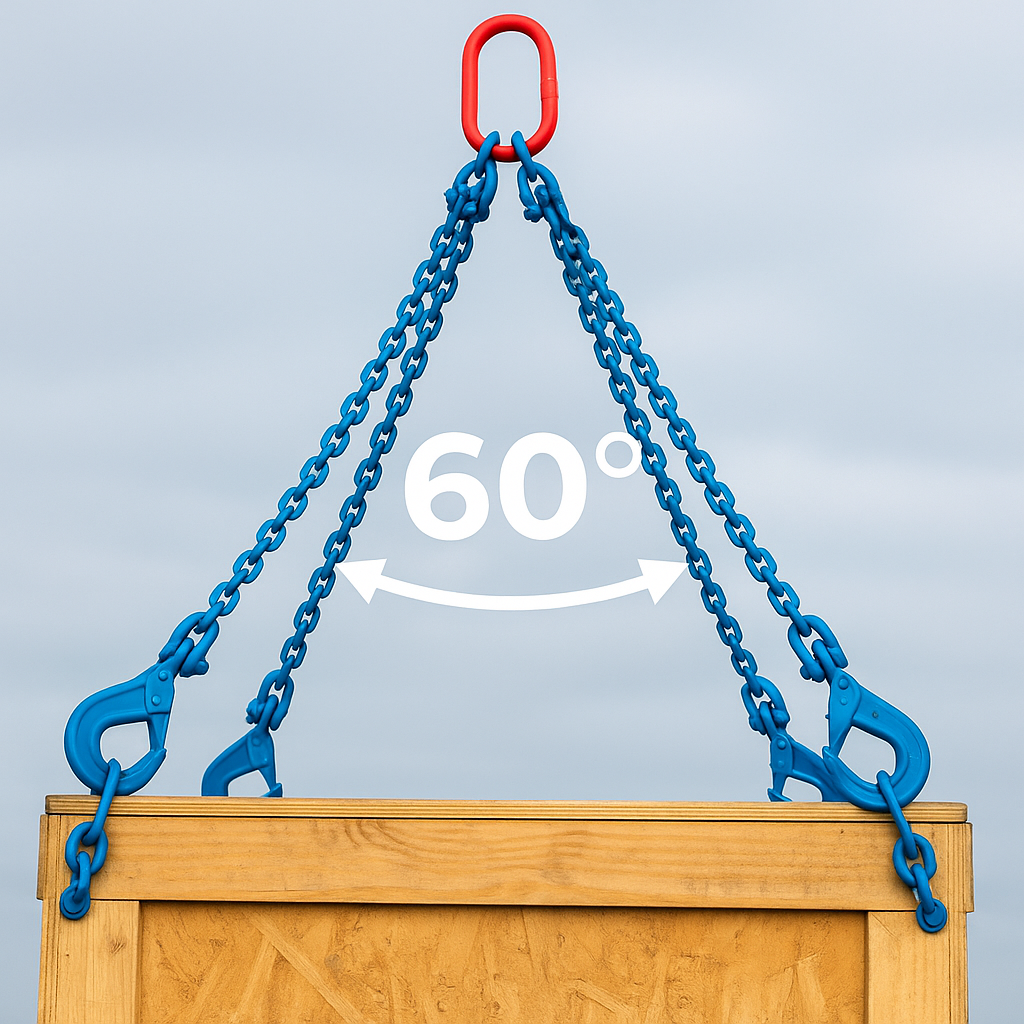

G100 legs trim weight while bridle angle stays within 60 °. The images are for reference only. For more details, please click here!

6 Six-Step Purchase Workflow

1. List the heaviest daily load; ignore rare peaks.

2. Add rigging mass plus 10 % buffer.

3. Select leg count that balances stability and hook space.

4. Multiply by angle factor (1.15 default at 60° for 2–4 legs).

5. Pick diameter whose table WLL beats the number.

6. Match finish and hook style to site threat and grade.

Complete the six moves in minutes and you never overspend on steel or miss weight targets.

7 Care Steps That Extend Service Life

Gauge mid-link diameter monthly—scrap at 10 % wear.

Measure five-link pitch—retire at 3 % stretch.

Oil links lightly after wash-down; stop fretting.

Store slings on racks, not pallets; puddles pit weld toes.

Swap legs between hooks on multi-leg slings to even wear.

Good habits push G80 to four years, G100 to three, stainless beyond five in briny air.

新网站250626-7

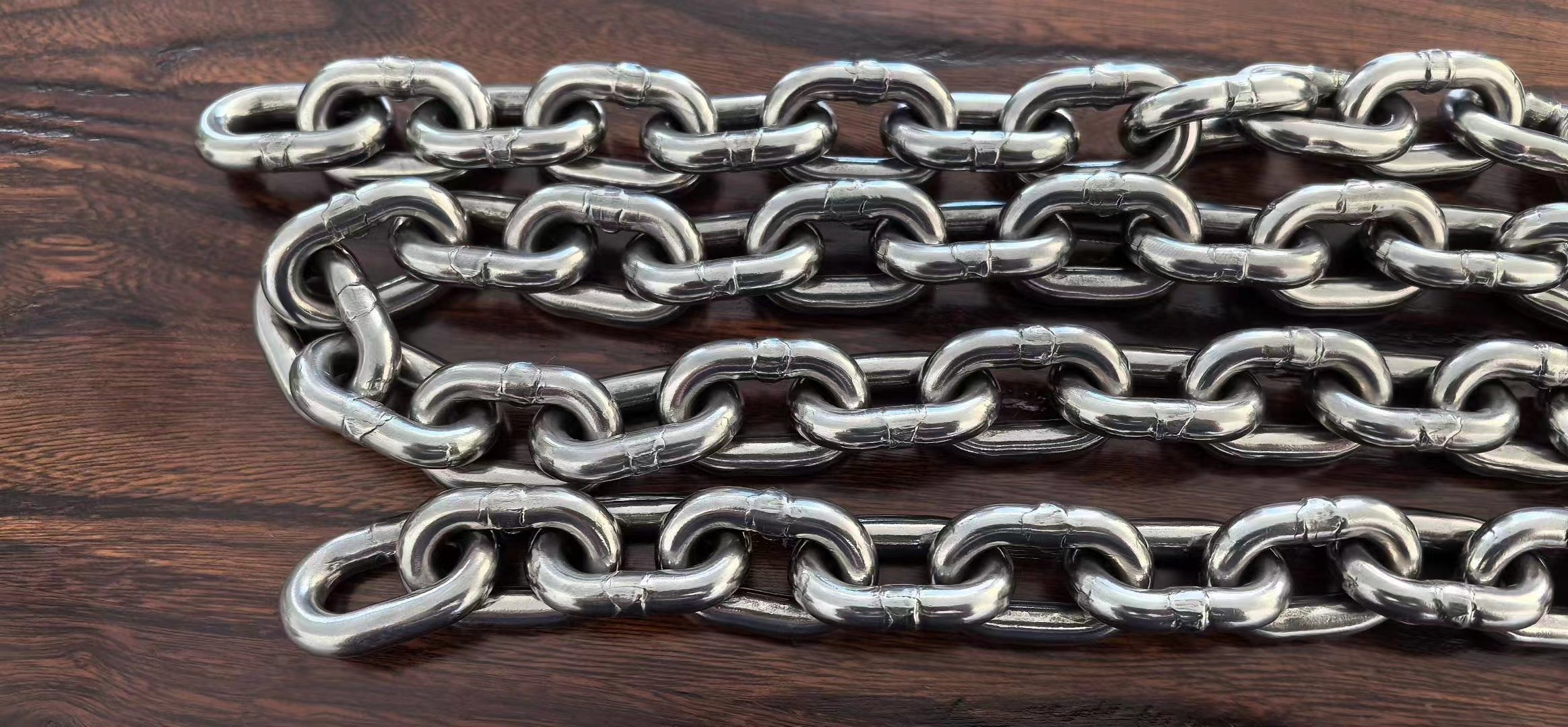

Stainless G80 sling stays bright after endless CIP cycles.

Conclusion

Use the grade table, diameter matrix, and industry chart to grab the chain sling that lifts heavier, lasts longer, and fits your site without waste— dive into full Topone stock now at lifting-chain.com.
