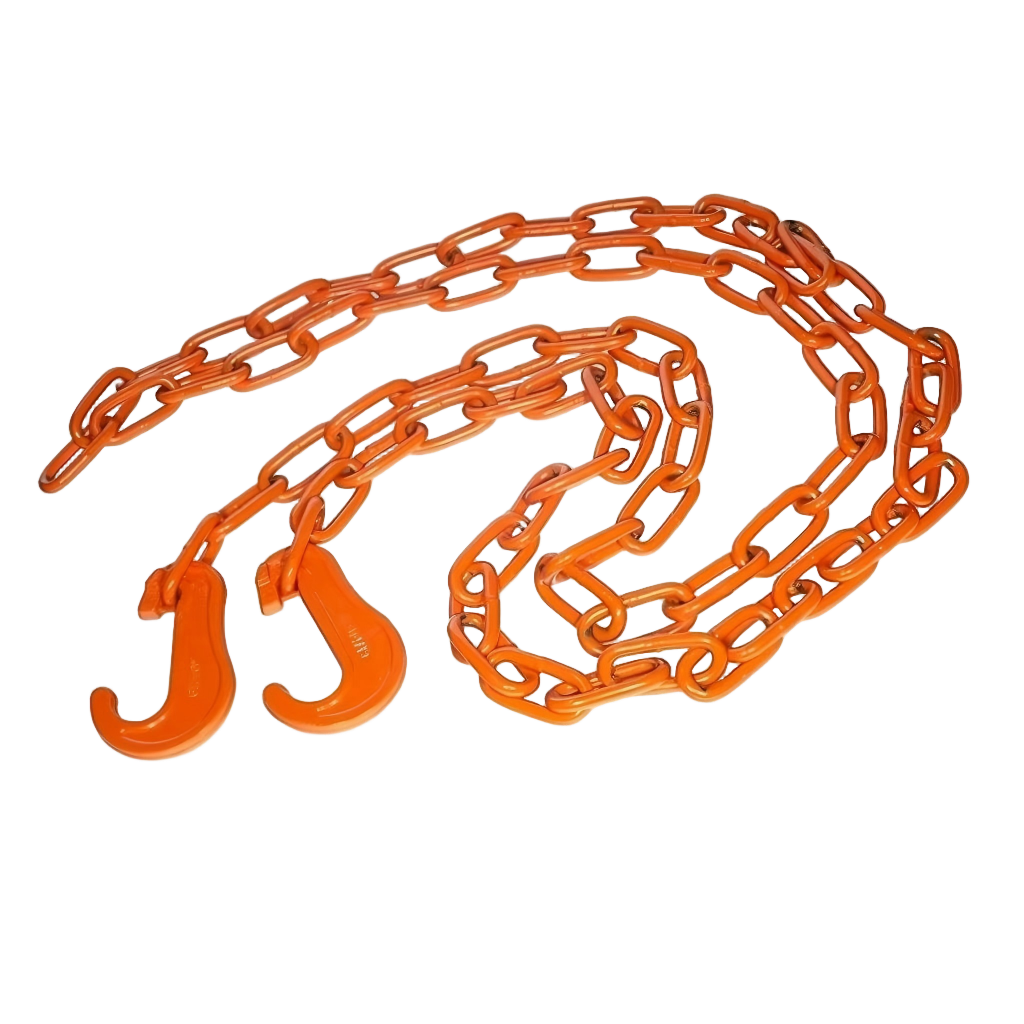

Lashing Chain

Our Lashing Chain is a robust and durable piece of equipment designed to secure cargo, equipment, and various objects on the deck of ships or other maritime facilities. These chains are made of high-strength steel, often galvanized or coated with corrosion-resistant materials to ensure they can withstand harsh weather conditions and the corrosive marine environment.



Key Characteristics:

High-strength steel construction with exceptional durability

Available in three standard diameters: 9mm, 11mm, and 13mm

Robust hooks on both sides for secure attachment

DNV GL certified for maritime use

Multiple terminal configurations available (hooks, shackles, elephant feet)

Galvanized or powder-coated for corrosion resistance

Suitable for heavy cargo on ships and RoRo transport

Variable length configurations from 3 meters to 10 meters

Compliant with international maritime standards

Introduction

Why Choose Our Lashing Chain?

In maritime and cargo transport operations, the security and safety of cargo is paramount. Improper lashing can result in cargo shifting, equipment damage, and dangerous situations at sea. Our Lashing Chain represents the industry standard for professional cargo securing, combining proven engineering with practical reliability.



The Challenge in Cargo Transport

Maritime and cargo transport operations face unique challenges:



Heavy Load Requirements: Securing cargo weighing hundreds of tons requires equipment with exceptional strength

Harsh Marine Environment: Exposure to saltwater, humidity, and extreme weather conditions

Regulatory Compliance: International maritime regulations require certified equipment

Safety Critical: Cargo failure can result in dangerous situations and catastrophic consequences

Operational Efficiency: Need for quick and reliable cargo securing systems



Our Solution

Our Lashing Chain addresses all these challenges through:



High-Strength Steel Construction - Manufactured from premium steel with exceptional tensile strength

DNV GL Certification - Certified for use on all DNV GL classified ships

Corrosion Protection - Galvanized or powder-coated for marine environments

Versatile Configurations - Multiple terminal options for different applications

Industry Standards - Compliant with international maritime and cargo transport regulations



Real-World Performance

Maritime operations using our Lashing Chain report:



Exceptional reliability in securing heavy cargo on ships and containers

Extended service life compared to standard chains

Minimal maintenance requirements with proper care

Superior load-holding capacity for diverse cargo types

Full regulatory compliance for international maritime transport

Parameter

Table 1: Lashing Chain - Dimensional and Performance Specifications

Diameter

(mm)

Link Length

(mm)

Working Load Limit

(kN)

Working Load Limit

(Tonnes)

Breaking Strength

(kN)

Breaking Strength

(Tonnes)

Weight Per Meter

(kg)

Standard Lengths

(m)

9

45

50

5.0

100

10.0

0.32

3, 4, 5, 6, 8, 10

11

55

75

7.5

150

15.0

0.48

3, 4, 5, 6, 8, 10

13

65

100

10.0

200

20.0

0.71

3, 4, 5, 6, 8, 10

Table 2: Quality Standards and Specifications

Specification

Details

Standard

Verification

Material Grade

High-strength alloy steel

DNV GL

Certified

Certification

DNV GL Certified for maritime use

DNV GL

Third-party certified

Corrosion Protection

Galvanized or powder-coated

ISO 1461

Coating thickness verified

Tensile Strength

As per diameter specifications

DNV GL

Tested and certified

Link Configuration

Standard maritime chain links

DNV GL

Inspected

Terminal Options

Hooks, shackles, elephant feet

DNV GL

Multiple configurations

Length Tolerance

±50mm per 6 meters

DNV GL

Measured and verified

Proof Testing

100% proof tested before delivery

DNV GL

Certificate provided

Certification Documents

DNV GL Certificate included

DNV GL

Available upon request

Compliance Standards

ISO 1275, DNV GL, IMO regulations

Multiple

Fully compliant

Standards

Specifications Summary

Aspect

Specification

Product Name

Lashing Chain

Category

Forestry Series

Available Diameters

9mm, 11mm, 13mm

Material

High-strength alloy steel

Working Load Range

50 kN - 100 kN

Breaking Strength Range

100 kN - 200 kN

Available Lengths

3m, 4m, 5m, 6m, 8m, 10m

Certification

DNV GL Certified

Corrosion Protection

Galvanized or powder-coated

Standards

ISO 1275, DNV GL, IMO

International Standards Compliance

DNV GL Certification - Approved for maritime use on certified ships

ISO 1275 - General Purpose Conveyor Chains

IMO Standards - International Maritime Organization compliance

ISO 9001:2015 - Quality Management System

ISO 14001:2015 - Environmental Management System



Quality Testing and Verification

100% Proof Testing - Every chain tested before delivery

Tensile Strength Testing - Verified per specifications

Corrosion Resistance Testing - ASTM B117 salt spray test

Link Precision Testing - Dimensional accuracy verified

Certification Documentation - DNV GL certificates provided

Q & A
What is a grade 100 chain (G100 chain)? What is special about it?
Grade 100 chain is also called g100 chain or g10 chain. G100 chain is about 25% better than ordinary alloy lifting chain.
When should I use a G100 chain?
First of all, you can use grade 100 chain in any situation. You can use it for overhead lifting, heavy lifting, trailer transport fixing, log lashing, bulk carrier lashing. As the mainstream and highest performance chain on the market, you can use it in any work scenario.
What should I pay attention to when using Grade 100 chain? Is it safe?
You need to pay attention to whether the working tension exceeds the maximum working safety load we specify. The maximum working safety load we recommend is not higher than one-fourth of the chain breaking load. Each link has passed the test of 2.5 times the working load before leaving the factory. So it is undoubtedly safe to use it within the normal working load range.
Is Grade 100 chain stronger than Grade 80?
Grade 100 chain has a significantly higher strength-to-weight ratio than grade 80 chain (approximately 25% higher), and the surface material of grade 100 chain is also slightly harder, which provides some advantages in terms of wear resistance.
I don't see the size I want in the datasheet, can I get a custom size?
Yes, please contact our sales staff. They will work with our technicians to propose a solution for you based on your application scenario, which is usually free of charge!
