Industrial Chain Sling Solutions for Heavy Lifting

A chain sling is one of the most dependable lifting tools used across heavy industry. With the ability to withstand abrasion, heat, shock loading, and harsh outdoor conditions, chain slings remain the preferred choice for construction sites, steel fabrication plants, offshore projects, and mining operations.
This article provides a deeper look into how chain slings operate, why they outperform other lifting methods, and what makes them essential in today’s industrial environments.

251128-chain aling (1)

Why Chain Slings Are Essential in Industrial Lifting

A chain sling is designed for maximum durability, strength, and service life. Unlike synthetic or wire rope slings, a chain sling maintains performance even when subjected to demanding workloads.

Key Industrial Advantages

Extreme load-bearing capability

Long resistance to wear, impact, and sharp edges

Minimal maintenance requirements

High operating temperature tolerance

Reliable performance in dirty, oily, or abrasive conditions

These properties allow chain slings to remain operational in environments where other rigging equipment quickly deteriorates.

Chain Diameter (mm)	Grade	Single Leg (0°–90°)	Double Leg (0°–45°)	Double Leg (45°–60°)	3/4 Leg (0°–45°)	3/4 Leg (45°–60°)
6 mm	G80	1.12 t	1.96 t	1.40 t	2.80 t	2.00 t
8 mm	G80	2.00 t	3.50 t	2.50 t	4.80 t	3.40 t
10 mm	G80	3.15 t	5.50 t	3.90 t	7.50 t	5.40 t
13 mm	G80	5.30 t	9.20 t	6.50 t	12.8 t	9.10 t
16 mm	G80	8.00 t	14.0 t	9.90 t	19.0 t	13.4 t
20 mm	G80	12.5 t	22.0 t	15.6 t	30.0 t	21.8 t
22 mm	G80	15.0 t	26.0 t	18.3 t	35.0 t	24.5 t
26 mm	G80	21.2 t	37.2 t	26.2 t	50.2 t	36.0 t

How a Chain Sling Is Constructed

Chain slings are made from alloy steel chains combined with precision-forged rigging components:

1. Master Link

Connects the sling to the crane or hoist.

2. Alloy Steel Chain

Typically G80 or G100 steel for strength and toughness.

3. End Fittings

Different hooks serve different load-handling needs.

4. Optional Adjusters

Shortening clutches allow flexible length adjustment.

This modular structure makes the chain sling one of the most customizable lifting tools on the market.

Chain Sling Configurations for Industrial Tasks

Depending on operational requirements, chain slings can be configured into:

Single-Leg Chain Sling

Vertical lifting of balanced loads.

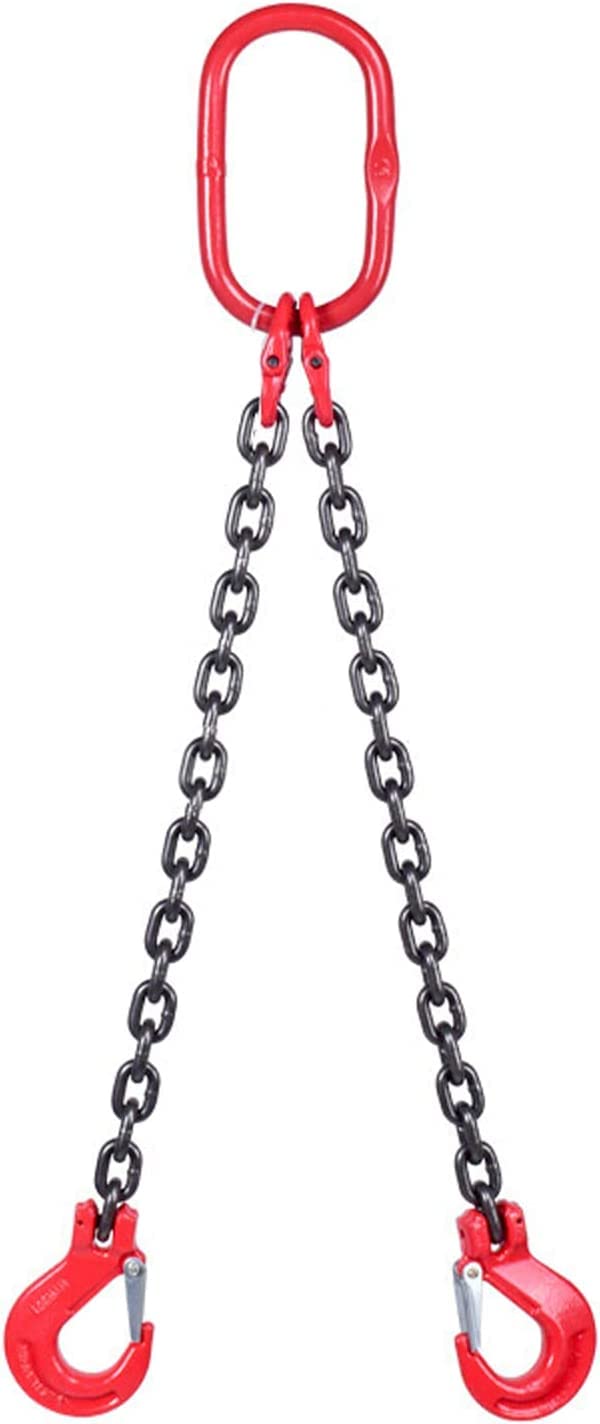

Double-Leg Chain Sling

Common in construction for steel beams and plates.

Three-Leg Chain Sling

Used when loads are irregular or inherently unbalanced.

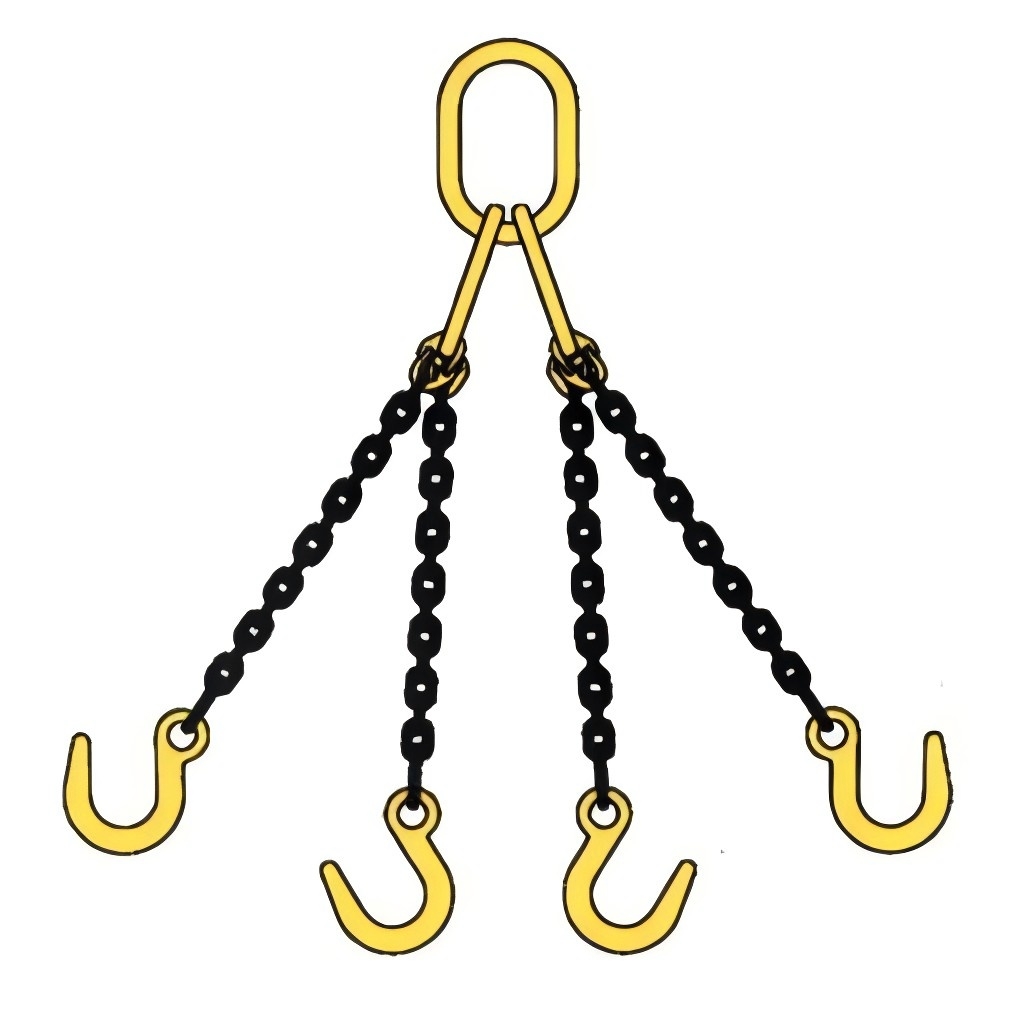

Four-Leg Chain Sling

Provides maximum stability and lifting control.

251128-chain aling (3)

Selecting the Right Chain Sling for Industrial Use

Choosing the right chain sling depends on:

1. Working Load Limit (WLL)

Higher WLL is required for machinery lifting, precast concrete, offshore modules, etc.

2. Chain Grade

G80 for general heavy lifting

G100 for higher capacity with lighter weight

3. Sling Angle

Wider angles reduce capacity — an essential safety consideration.

4. Hook Type

Self-locking hooks → safest

Grab hooks → length adjustment

Foundry hooks → high-temperature environments

5. Application Environment

Corrosion, heat, and chemicals influence material and coating selection.

Industrial Applications of Chain Slings

Chain slings are widely used in:

Construction

Hoisting concrete panels, steel beams, and rebar bundles.

Shipbuilding & Marine

Handling anchor chains, plates, ship blocks, and lifting sections.

Mining & Heavy Industry

Moving crushing equipment, conveyors, motors, and heavy assemblies.

Steel & Foundry Work

Perfect for high-temperature environments where synthetic slings fail.

Manufacturing and Warehousing

Lifting molds, dies, machine components, and equipment packages.

These industries rely heavily on the chain sling due to its robustness and service longevity.

Why Chain Slings Outperform Other Lifting Tools

Compared to webbing or wire rope slings:

Chain slings last significantly longer

They retain strength even with frequent use

Links can be replaced individually

They remain safe in heat, oil, and abrasive environments

They provide adjustable configurations

This makes chain slings a long-term, cost-efficient investment for companies handling heavy materials.

TOPONE CHAIN® — Trusted Industrial Chain Sling Manufacturer

TOPONE CHAIN® supplies certified, precision-manufactured chain slings globally. Our industrial-grade slings are built from:

G80 & G100 alloy lifting chains

Heat-treated steel for higher tensile strength

Customizable multi-leg assemblies

Master links, connectors, shortening clutches, and forged hooks

Full CE / TÜV / ISO9001 certification

With nine automated production lines and strict quality control, we deliver reliable chain sling systems for the most demanding lifting environments.

Conclusion

A chain sling is essential for any operation requiring safe and efficient heavy lifting. Its combination of strength, durability, and adaptability makes it the most trusted rigging tool across global industries.
Whether your lifting tasks involve steel work, machinery, construction materials, or offshore modules, a high-quality chain sling ensures long-term performance and operational safety.

For certified, customizable chain slings built for industrial-grade lifting, TOPONE CHAIN® is your trusted global partner.
