You see both phrases on quotes and tags, yet crews often treat them as the same thing. An alloy sling chain describes the complete, rated lifting member you rig from the crane hook—links plus master link, hooks, and sometimes shorteners—while alloy chain names the quenched-and-tempered link material that makers use to build those slings. Learn how each term guides selection, how standards drive markings, where the assemblies work best, and how you set geometry so tension stays honest. Use this field guide to brief teams, align purchases, and move jobs faster with fewer surprises.

Alloy Sling Chain: What You Actually Rig

You order an alloy sling chain when you need a ready-to-use sling. The tag on the head lists Working Load Limits (WLL) by hitch (vertical, choke, basket), the leg count, and the angle table. Makers stamp each link with a grade mark (commonly “8” for Grade 80 or “10” for Grade 100) and a size. The assembly also carries a serial or batch ID and a manufacturer code. You match hooks, shorteners, master links, and shackles to the same grade family so the assembly keeps its stated WLL.

Where it shines: fabrication bays, machinery moves, precast yards, mining sites, and marine decks—anywhere heat, edges, shock, or grit punish webbing or rope.

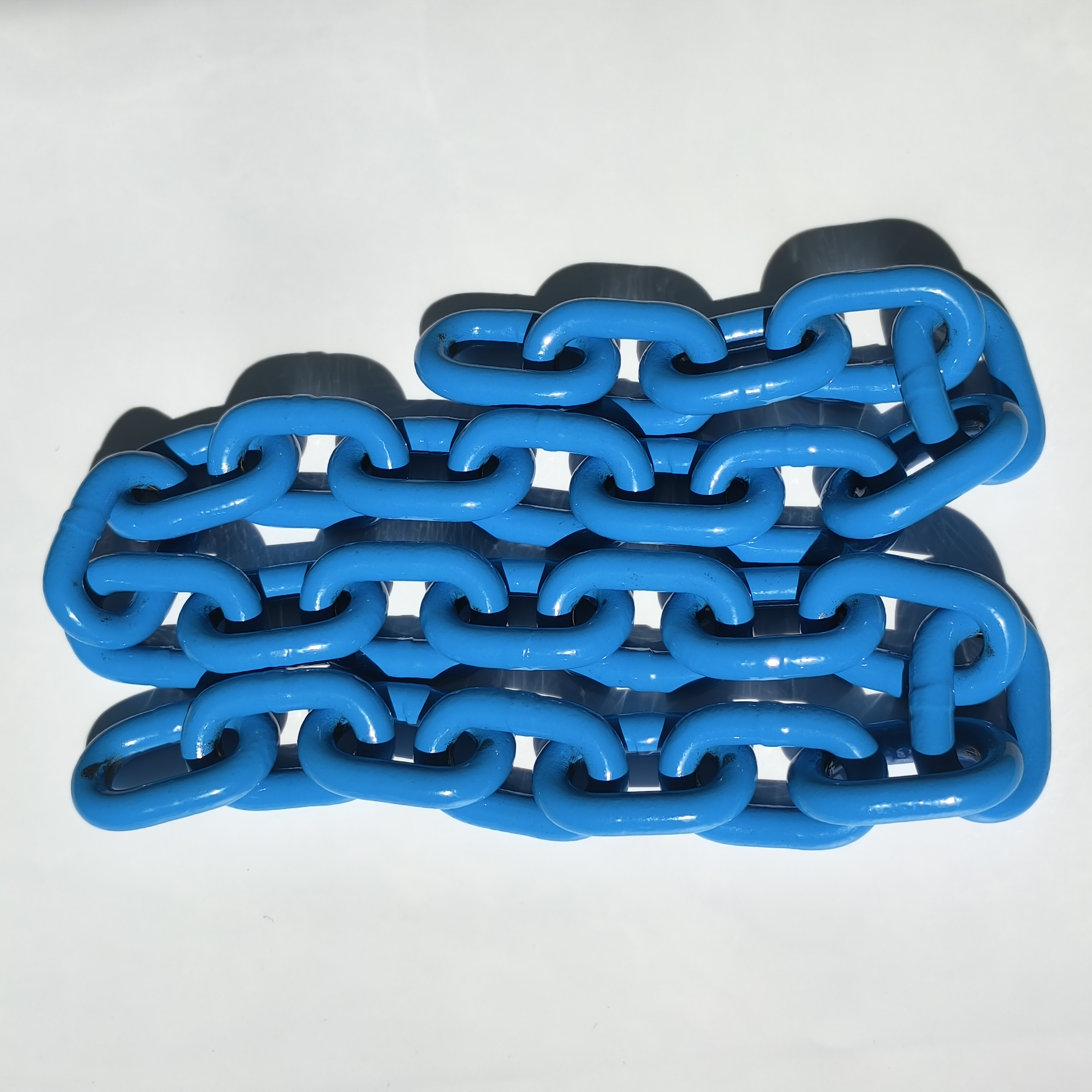

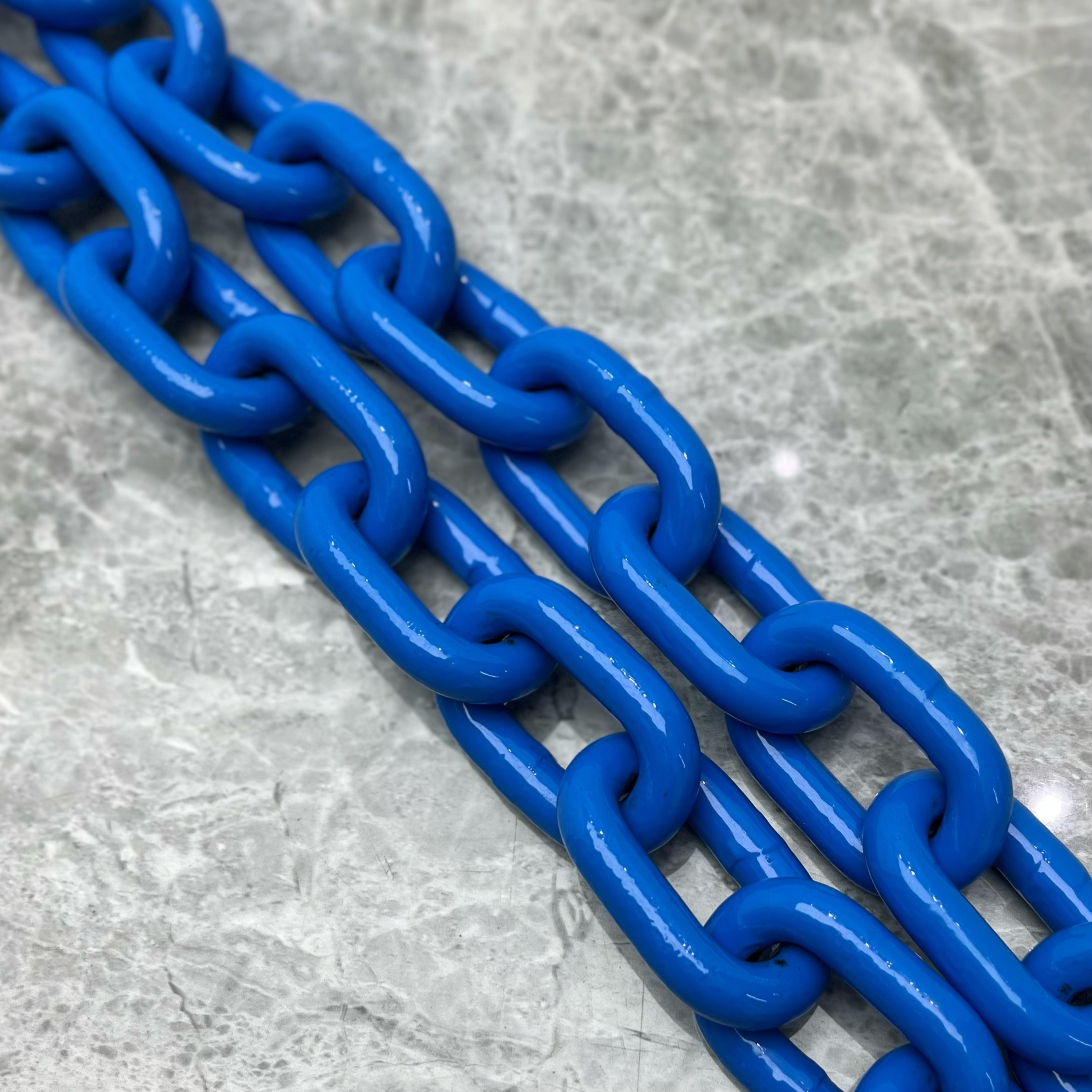

Alloy Chain: The Material Behind the Sling

Alloy chain refers to the heat-treated low-alloy steel link itself. Manufacturers quench and temper the material, then stamp grade and size so you can trace it. You can buy bulk alloy chain for building or repairing slings under a qualified program, however you still need rated fittings, a proof test, and a traceable tag before the chain enters overhead service. Treat loose alloy chain as a component until a competent shop assembles and certifies the sling.

Choose by Job: Environments and Duties That Fit

Hot, abrasive, or spark-heavy work
Alloy sling chain handles grinder sparks and rough steel. You protect corners with guards and you check crowns for wear.

Irregular modules and skids
Use a two- or four-leg alloy sling chain with self-locking hooks and a load leveler to control pitch while you thread tight spaces.

Precast panels and blocks
Alloy sling chain tolerates form abrasion. You connect with shackles or rated inserts and you keep the included angle near 60°.

Mining and heavy equipment
Frames, buckets, and track groups chew gear. Alloy sling chain resists impact and side rub; wear sleeves reduce crown damage.

Marine and offshore
Wind and swell change leg angles. Use multi-leg alloy sling chains and bow shackles at the head; rinse and lube after splash.

Standards and Markings You Verify Every Time

You ground decisions in published rules and clear stamps:

<!--[if !supportLists]-->l <!--[endif]-->ASME B30.9 (U.S.) and EN 818-4 (EU): construction, marking, proof testing, and use for chain slings.

<!--[if !supportLists]-->l <!--[endif]-->ASME B30.26 / EN 13889: shackles and many fittings.

<!--[if !supportLists]-->l <!--[endif]-->On the metal: grade (“8”/“10”), size, WLL on hooks and shackles, manufacturer ID, and a serial or batch code.

<!--[if !supportLists]-->l <!--[endif]-->On the tag: WLL by hitch and angle, leg count, and the governing standard.

Skip color guesses; read the tag and the steel.

Angle Drives Tension—Measure, Then Lift

Angles change leg tension faster than anything else. Plan a 60° included angle whenever space allows; reopen tight geometry with a spreader or shorten legs evenly.

Two-leg quick check
Tension per leg = Load ÷ (2 × sin θ), with θ measured from vertical.

Three-/four-leg planning
Assume three legs carry while the fourth balances; size diameter and grade from the sling tag’s angle table.

Application Matrix—Alloy Sling Chain vs Alloy Chain

Always match component grades; the lowest grade controls the assembly.

Pair Accessories That Keep One Rating Language

You build a single path from hook to load:

<!--[if !supportLists]-->l <!--[endif]-->Master link: keep inside width ≥ 5× chain diameter so the crane latch clears.

<!--[if !supportLists]-->l <!--[endif]-->Hooks: use self-locking for wind, vibration, or long moves; use spring-latch only for short, protected lifts.

<!--[if !supportLists]-->l <!--[endif]-->Shackles: choose bow when legs sweep; run the pin through the hardware and face the bow toward the legs.

<!--[if !supportLists]-->l <!--[endif]-->Shorteners: seat one full link in a rated pocket; reject worn castings.

<!--[if !supportLists]-->l <!--[endif]-->Swivels: keep rotation in-line only; avoid side load.

Field Setup—A Repeatable Nine-Step Method

<!--[if !supportLists]-->1. <!--[endif]-->Lay the sling flat and roll links until grade stamps face up; clear twists.

<!--[if !supportLists]-->2. <!--[endif]-->Inspect shorteners, hooks, shackles, and the master link; remove burrs and replace scarred parts.

<!--[if !supportLists]-->3. <!--[endif]-->Seat the master link in the crane hook; close the latch and confirm free swing.

<!--[if !supportLists]-->4. <!--[endif]-->Engage hooks in rated padeyes or shackles; seat hooks in the bowl, not on the tip.

<!--[if !supportLists]-->5. <!--[endif]-->Pull snug and measure the angle with a card or an inclinometer.

<!--[if !supportLists]-->6. <!--[endif]-->Trim legs or add a spreader until you hit the plan angle and level.

<!--[if !supportLists]-->7. <!--[endif]-->Lift 150 mm, pause, re-check latches, balance, and clearances.

<!--[if !supportLists]-->8. <!--[endif]-->Travel slowly; add corner guards where chain meets edges.

<!--[if !supportLists]-->9. <!--[endif]-->Land straight; release tension and unhook in reverse order.

Example Capacity Snapshot*

*Use your sling tag and the maker’s table for exact values before any lift.

Inspection You Can Finish Before the First Pick

Keep checks short and measurable; then log them.

<!--[if !supportLists]-->l <!--[endif]-->Tag and traceability: grade, WLL, angle table, serial, and maker ID read clearly.

<!--[if !supportLists]-->l <!--[endif]-->Pitch growth: measure five consecutive links under light tension; retire legs that exceed the manufacturer’s elongation limit.

<!--[if !supportLists]-->l <!--[endif]-->Crown wear: gauge diameter; retire legs that reach the published wear limit.

<!--[if !supportLists]-->l <!--[endif]-->Hooks and latches: cycle ten times; verify throat opening; reject cracks at the saddle or neck.

<!--[if !supportLists]-->l <!--[endif]-->Shorteners and shackles: check pocket shape, sidewalls, pins, and threads; fit cotters on bolt-types.

<!--[if !supportLists]-->l <!--[endif]-->Records: photograph stamps and store certificates with the sling file.

Finish and Environment—Pick What Survives

Indoor shops: black-oxide or phosphate Grade 80 cleans quickly and shows stamps clearly.

Coastal yards: zinc–nickel coated alloy wipes free of salt mist; rinse and lube after splash.

Washdown or chemical areas: stainless chain and hardware (304/316) resist pitting; match alloys to curb galvanic attack.

Hot work nearby: follow the temperature curve in the data sheet and log exposure for the next inspection.

Conclusion

Read the tag, match grades across every component, measure angles with tools, protect edges, and log inspections, and both alloy sling chain and alloy chain will serve demanding lifts with control and traceability—contact TOPONE CHAIN today for certified alloy sling chains, components, and full documentation for your next job.
