Crews face tight headroom, awkward pick points, and surfaces that bite back, so smart buyers compare all slings and chains before they rig. Web, wire rope, and alloy chain each solve different problems, yet geometry still rules every lift. When centers of gravity wander or padeyes sit out of plane, adjustable lifting chains give you fast, precise control without a full re-rig. This guide maps clear use cases, shows practical angle control, and lists inspection steps that keep auditors happy and crews safe.

Start with Standards and Stamps

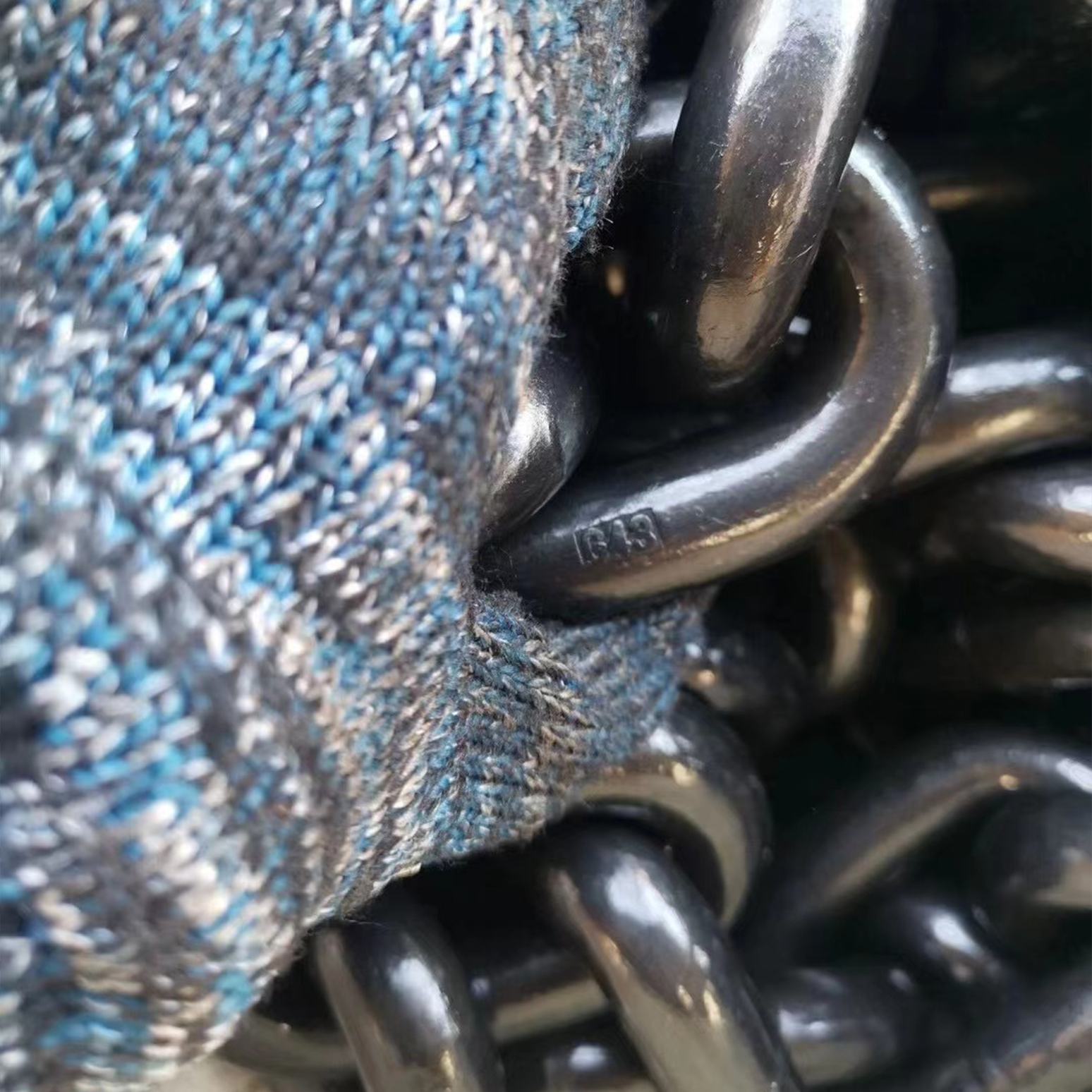

You ground decisions in markings, not paint. Chain sling tags cite ASME B30.9 or EN 818-4, show Working Load Limits (WLL) by hitch and angle, and carry a serial or batch ID plus the manufacturer’s mark. Links carry grade stamps (often “8” for Grade 80 or “10” for Grade 100) and a size. Hooks, shackles, shorteners, and swivels carry WLL and model IDs; keep those stamps in the same rating family so the assembly speaks one language from hook to load. Read the metal, photograph the stamps, and file the proof test with the sling record.

Where “All Slings and Chains” Fit—Choose by Environment

Web slings bend easily and protect finishes, so crews love them under painted housings and glass. Edges still threaten them, therefore edge guards matter.
Wire rope slings carry high stiffness and resist crush; they snake through fire-hot work better than webbing, yet they still need corner protection and clear bend radii.
Alloy chain slings shrug off sparks and abrasion, accept shorteners, and handle repeat starts. Crews read angles, trim leg length, and keep WLL honest even when geometry changes. When loads live near heat, grit, or sharp steel, alloy chain usually wins.

Why Adjustable Lifting Chains Change the Day

Real loads rarely hang level. Adjustable lifting chains drop a full link into a machined pocket (shortener) and lock it, so you:

lTrim two legs to level an offset center of gravity.

lReopen tight angles when headroom squeezes.

lKeep each leg inside its tag table without swapping hardware.

Adjustable heads place shorteners at the master link, which keeps the layout tidy and speeds repeat jobs. Always seat one full link in a rated pocket, keep the load path centered, and inspect pocket sidewalls for peening or cracks before the shift.

Angle Drives Tension—Measure, Then Move

You stop guessing and use numbers. Angle multiplies tension fast, so you keep the included angle near 60° when space allows. If the angle closes, leg tension climbs and capacity shrinks.

Two-leg quick check
Tension per leg = Load ÷ (2 × sin θ), where θ = angle from vertical of one leg.

Three-/four-leg planning
Assume three legs carry while the fourth balances; pick chain diameter and hooks from the sling tag’s angle table. Add a spreader when headroom squeezes; do not trade angle for convenience.

Comparison Table — All Slings and Chains at a Glance

Confirm all WLL and angle limits on the sling tag before any pick.

Build the Head Correctly and Keep One Rating Language

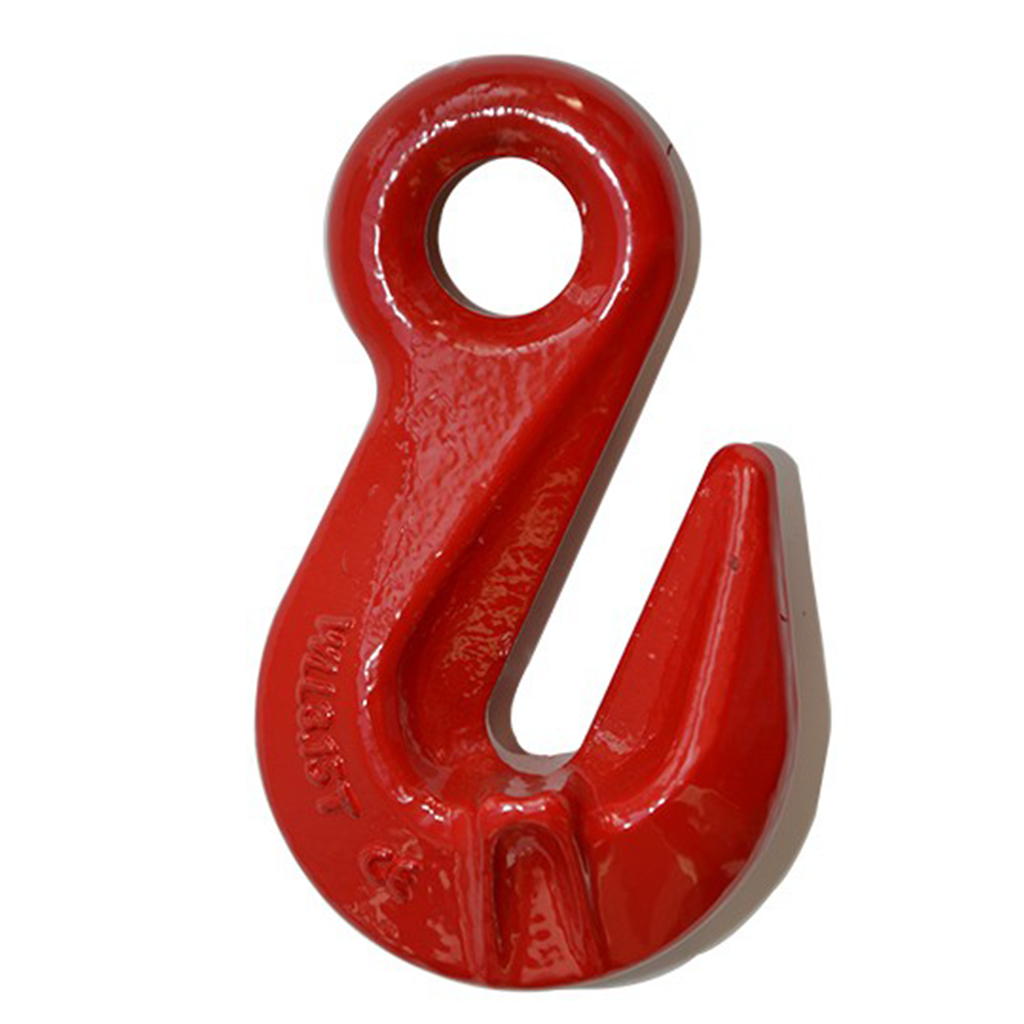

Seat the master link so the crane latch closes freely; as a field rule, keep inside width ≥ 5× chain diameter. Fit hooks with throat opening ≥ 4× chain diameter so links seat in the bowl without pinch. Choose self-locking hooks for wind, vibration, or long travel; use spring-latch hooks only for short, protected moves. When legs may sweep, add bow shackles at the head; run the pin through the hardware and face the bow toward the legs so the pin works in pure shear.

Field Setup—A Repeatable Nine-Step Method

1. Lay the sling flat; roll links until grade stamps face up and legs untwist.

2. Inspect shorteners and connectors; remove burrs and replace scarred castings.

3. Seat the master link in the crane hook; verify latch travel and free swing.

4. Engage hooks in rated padeyes or shackles; align eyes to the line of pull.

5. Snug the rig and measure the angle with a card or an inclinometer.

6.Trim long legs with adjustable lifting chains until the load sits level.

7. Lift 150 mm, pause, and re-check balance, latch closure, and clearances.

8. Travel slowly; add corner guards wherever chain meets a radius or edge.

9.Land straight, release tension, and unhook in reverse order.

Use Cases That Reward Adjustability

lModular skids and frames
Pick points rarely match heights. You shorten two legs, open the angle to plan, and land anchor bolts on the first try.

lPrecast and panel handling
Inserts often sit out of plane. You equalize leg length and steer past braces without overloading one corner.

lMaintenance pulls
Motors and reducers demand small pitch changes while you align feet and shims. Adjustable legs plus a leveler save time and reduce resets.

lMarine and offshore
Swell nudges angles. You trim leg length on deck and hold WLL while the crane tracks.

Inspection—Short, Measurable, and Logged

You finish five checks before the first pick:

Tag & traceability: grade, WLL by hitch, angle table, serial, and maker ID read clearly.

Pitch growth: measure five consecutive links under light tension; retire legs that exceed the manufacturer’s elongation limit.

Crown wear: gauge diameter; retire legs that meet the published wear limit for your brand and standard.

Hooks & latches: cycle ten times; confirm positive closure and check throat opening; reject cracks at the saddle or neck.

Shorteners & shackles: inspect pocket geometry and pins; fit cotters on bolt-types; replace bent or scarred pins.

File proof tests and inspection sheets with the sling record and add photos of stamps so audits move quickly.

Finish and Environment—Choose What Survives

Indoor shops benefit from black-oxide or phosphate Grade 80 chain because stamps read easily and cleanup stays quick. Coastal yards gain time with zinc-nickel coated chain; rinse after salt exposure and oil lightly at pivots. Washdown or chemical zones call for stainless (304/316) chain and fittings; match alloys to curb galvanic attack and document exposure for the next inspection. Near hot work, follow the maker’s temperature curve and log any heat event.

Troubleshooting—Fix It Before You Fly

Conclusion

Compare all slings and chains by environment, measure angles with tools, and trim legs with adjustable lifting chains so every pick stays inside the tag—contact TOPONE CHAIN today for certified adjustable chain slings and full documentation for your next job.
